TRAINING COURSE on VALVES - CBT / WBT

The Industrial Valve Training Course has been developed to assist in Valve Maintenance, Operation and Repair. The course, designed with extensive Graphics and Animation, gives a virtual Practical exposure on Valve Types with detailed Valve Assembly procedure. The Training course also covers Steam Traps and Strainers.


Industrial Valve Training - Maintenance and Operation

*The above image is a compilation of a few ‘snapshots’ from Industrial Valve Training Course, which primarily focuses on Multimedia inputs like Graphics,
Animation and Interactivity!

Computer Based Training (CBT) courses /
Online Web Based Training (WBT) Courses for
Industrial Operation, Maintenance & Technical Skills

ONLINE WBT / CBT ON MECHANICAL SEALS - A FEW HIGHLIGHTS
  • Introduction, Classification of Valves
  • An extensive range of Valves covered
  • Extensive 2D / 3D Graphics, Models and Animations
  • Detailed coverage on Working, Dismantling, Assembly, etc.
  • Games on Component Assembly, Skill tests, Certificate printouts.

The Training Course on Valves covers a large range of Valve Type like rising stem and non-rising stem Gate valve including wedge and double disk types, tee and angle pattern Globe valve, Flanged and screwed end Ball valve, Needle valve, Plug valve of various patterns and port types including lubricant seal action, Diaphragm valve, flanged and Wafer butterfly valve, Control valve, Pressure Relief Safety valve, Relief valve, swing / lift / ball Check valve, etc.

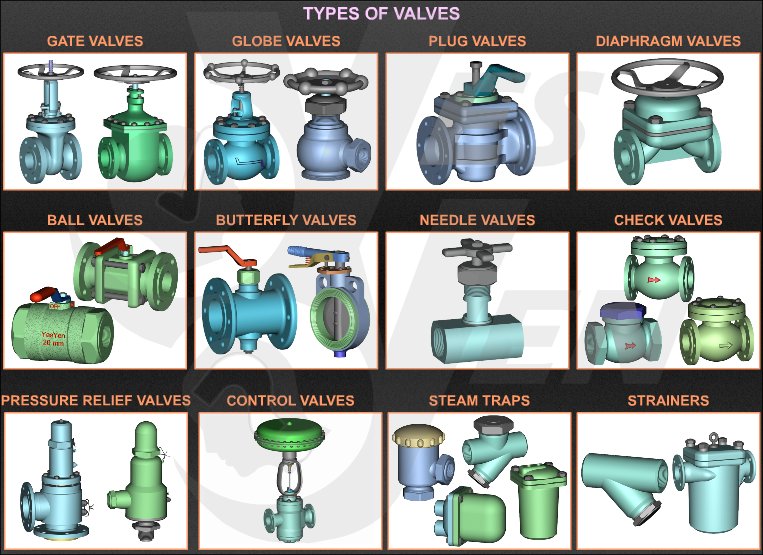

Industrial Valve Types
Industrial Valve Types

The Industrial Valve Training Course also includes a detailed coverage on Inverted Bucket Steam Trap, Float Steam Trap, Thermodynamic Steam Trap and Thermostatic Steam Trap Working.

The primary focus on Valve Animation / Graphic in the Industrial Valve Training Program helps in very clearly understanding Valve Maintenance Procedures & Valve Operating Principle / Working Principle. The virtual understanding provided dues to explicit focus on multimedia techniques is sure to aid in any maintenance related activity including Valve Repair.

A dedicated Game module in the CBT evaluates and guides the user towards providing a detailed knowledge on Valve Assembly and Dismantling. The user is can virtually assemble a large number of valves in a conceived pattern to refresh and reinforce the learning. Valve Graphic includes Animated Cut-Sections that gives a very clear understanding on the internals at component level, which would otherwise be very difficult to comprehend. The powerful multimedia approach give a Deep Insight into Valve Operation. The step-by-step guided intricate explanations provide a very practical understanding on How Valves Work...

The INDUSTRIAL VALVE TRAINING course is also available
in SPANISH & ARABIC VERSIONS

The INDUSTRIAL VALVE TRAINING course provides a
Practical - Comprehensive understanding on the subject!


BASIC LICENSE OPTIONS to Cover the Course for INDIVIDUALS:

Can be installed in 1 computer and viewed by any number of users. (Windows OS)
CBT - SINGLE MACHINE LICENSE OPTION
US$149
DETAIL

Online course access for 60 days. Participant recieves a Certificate of Completion / Merit on Passing the Assessment.
WBT - ONLINE COURSE with CERTIFICATE
US$49
DETAIL
For other license options (recommended for trainers / industries - with customized logo inclusion) like "Standalone" and "Multiple User" please CONTACT us)
CBT ON VALVES – CONTENT
1. Introduction
2. Types of Valve
2.1. Gate Valves
2.1.1. Rising Stem Gate Valves - Wedge type
2.1.2. Rising Stem Gate Valves - Double Disk type
2.1.3. Non Rising Stem Gate Valves - Wedge type
2.1.4. Non Rising Stem Gate Valves - Double Disk type
2.2. Globe Valves
2.2.1. Typical Globe Valves
2.2.2. Angle Globe Valves
2.3. Plug Valves
2.3.1. Single Port Valves
2.3.2. Multi Port Valves
2.3.3. Lubricant Seal Valves
2.4. Diaphragm Valves
2.5. Ball Valves
2.5.1. Flanged End Ball Valves
2.5.2. Screwed End Ball Valves
2.6. Butterfly Valves
2.6.1. Flanged End Butterfly Valves
2.6.2. Wafer Butterfly Valves
2.7. Needle Valves
2.8. Check valves
2.8.1. Lift Check Valves
2.8.2. Swing Check Valves
2.8.3. Ball Check Valves
2.9. Pressure Relief Devices
2.9.1. Relief Valves
2.9.2. Safety Valves
2.10. Control Valves
2.11. Steam Trap
2.11.1. Float Steam Traps
2.11.2. Thermostatic Steam Traps
2.11.3. Thermodynamic Steam Traps
2.11.4. Inverted Bucket Steam Traps
2.12. Strainer
2.12.1. Wye (Y) Strainers
2.12.2. Basket (Bucket) Strainers
3. Pressure testing of valves
(All the above topics are depicted and explained using plenty of 2D and 3D images, models and animations)
4. Games on Component Assembly
The user gets to assemble the various valves by observing and selecting respective 3D components, based on the understanding obtained from the CBT. The player is evaluated based on the correct positioning of the components and sequence of assembly. This module is sure to bring in a strong understanding of the various components of the valves, the relative locations and its dismantling and assembly procedure.
5. Conventional and Interactive Skill Tests with evaluation

The INDUSTRIAL VALVE TRAINING course is also available
in SPANISH & ARABIC VERSIONS

The INDUSTRIAL VALVE TRAINING course provides a
Practical - Comprehensive understanding on the subject!

BASIC LICENSE OPTIONS to Cover the Course for INDIVIDUALS:

Can be installed in 1 computer and viewed by any number of users. (Windows OS)
CBT - SINGLE MACHINE LICENSE OPTION
US$149
DETAIL

Online course access for 60 days. Participant recieves a Certificate of Completion / Merit on Passing the Assessment.
WBT - ONLINE COURSE with CERTIFICATE
US$49
DETAIL
For other license options (recommended for trainers / industries - with customized logo inclusion) like "Standalone" and "Multiple User" please CONTACT us)
